規格參數
|
項目
|

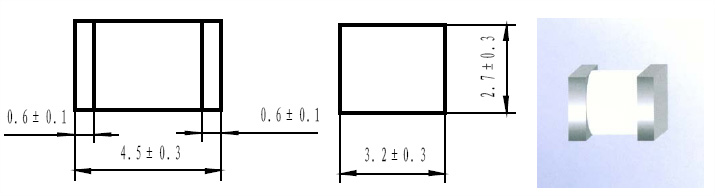

貼片2R系列陶瓷氣體放電管(3.2x2.7x4.5/mm)
|
|||||
|
規格
|
SM2R90V
|
SM2R150V
|
SM2R230V
|
SM2R350V
|
SM2R600V
|
SM2R1200V
|
|
標稱直流擊穿電壓 (100V/S)
|
90V±25%
|
150V ±20%
|
230V ±20%
|
350V±20%
|
600V±20%
|
1200V±20%
|
|
最大沖擊擊穿電壓 (1KV/us)
|
500V
|
500V
|
600V
|
700V
|
1000V
|
1800V
|
|
耐沖擊電流(短波)
(8/20us,10times)
|
2KA
|
2KA
|
2KA
|
2KA
|
2KA
|
2KA
|
|
耐交流電流
(50Hz,1S,5times)
|
2A
|
2A
|
2A
|
2A
|
2A
|
2A
|
|
最小絕緣電阻
|
1 GΩ
|
1 GΩ
|
1 GΩ
|
1 GΩ
|
1 GΩ
|
1 GΩ
|
|
最大極間電容
(1KHz)
|
1pF
|
1pF
|
1pF
|
1pF
|
1pF
|
1pF
|
