陶瓷放電三極管
系列號：TC-3R7.5x12

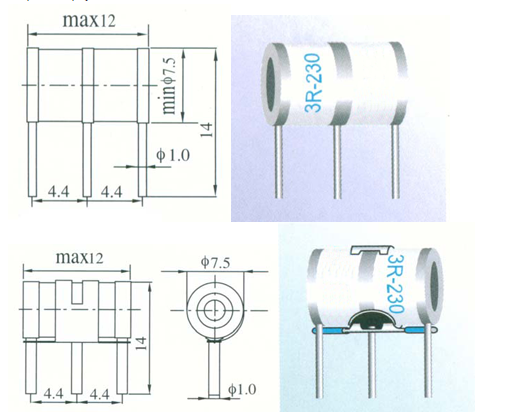

外形尺寸
規格參數
|
項目
|
3R系列陶瓷氣體放電管(Φ7.5x12)
|
||||||
|
規格
|
3R75 V
|
3R90 V
|
3R150 V
|
3R230 V
|
3R350 V
|
3R470V
|
3R600V
|
|
標稱直流擊穿電壓 (100V/S)
|
75V
±25%
|
90V
±25%
|
150V
±25%
|
230V
±20%
|
350V
±20%
|
470V
±20%
|
600V
±20%
|
|
最大沖擊擊穿電壓 (1KV/us)
|
700V
|
700V
|
700V
|
800V
|
800V
|
900V
|
1000V
|
|
耐沖擊電流(短波)
(8/20us,10times)
|
10KA
|
10KA
|
10KA
|
10KA
|
10KA
|
10KA
|
10KA
|
|
耐沖擊電流(長波)
(10/1000us,300times)
|
100A
|
100A
|
100A
|
100A
|
100A
|
100A
|
100A
|
|
耐交流電流
(50Hz,1S,5times)
|
10A
|
10A
|
10A
|
10A
|
10A
|
10A
|
10A
|
|
最小絕緣電阻
|
1000 MΩ
|
1000 MΩ
|
1000 MΩ
|
1000 MΩ
|
1000 MΩ
|
1000 MΩ
|
1000 MΩ
|
|
最大極間電容
(1KHz)
|
3pF
|
3pF
|
3pF
|
3pF
|
3pF
|
3pF
|
3pF
|
|
最大橫向電壓延遲時間
|
200ns
|
200ns
|
200ns
|
200ns
|
200ns
|
200ns
|
200ns
|
