............30V系列PTC...........

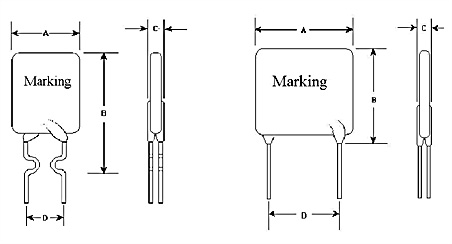

一、外形及尺寸
二、規(guī)格及尺寸表
|
Model/PDF
|
Vmax
(V) |
Imax
(A) |
Ih
(A) |
Rmax
(Ω) |
Rmin
(Ω) |
Fig.
|
Pd(W)
|
Maximum Contour Size(mm)
|
|||
|
A
|
B
|
C
|
D
|
||||||||
|
30-090
|
30
|
40
|
0.90
|
0.22
|
0.130
|
1
|
0.60
|
7.40
|
12.2
|
3.1
|
5.10
|
|
30-110
|
30
|
40
|
1.10
|
0.20
|
0.090
|
1
|
0.70
|
7.40
|
12.2
|
3.1
|
5.10
|
|
30-135
|
30
|
40
|
1.35
|
0.16
|
0.070
|
1
|
0.80
|
9.20
|
13.5
|
3.1
|
5.10
|
|
30-160
|
30
|
40
|
1.60
|
0.14
|
0.060
|
1
|
0.90
|
9.20
|
15.2
|
3.1
|
5.10
|
|
30-185
|
30
|
40
|
1.85
|
0.12
|
0.050
|
1
|
1.00
|
9.20
|
15.2
|
3.1
|
5.10
|
|
30-200
|
30
|
40
|
2.00
|
0.10
|
0.040
|
1
|
1.20
|
15.2
|
15.2
|
3.1
|
5.10
|
|
30-250
|
30
|
40
|
2.50
|
0.08
|
0.030
|
1
|
1.20
|
13.2
|
18.3
|
3.1
|
5.10
|
|
30-300
|
30
|
40
|
3.00
|
0.07
|
0.030
|
2
|
2.00
|
13.2
|
17.3
|
3.1
|
5.10
|
|
30-400
|
30
|
40
|
4.00
|
0.06
|
0.010
|
2
|
2.50
|
14.0
|
20.1
|
3.1
|
5.10
|
|
30-500
|
30
|
40
|
5.00
|
0.05
|
0.010
|
2
|
3.00
|
14.0
|
20.1
|
3.1
|
10.2
|
|
30-600
|
30
|
40
|
6.00
|
0.04
|
0.005
|
2
|
3.50
|
17.2
|
24.9
|
3.1
|
10.2
|
|
30-700
|
30
|
40
|
7.00
|
0.03
|
0.005
|
2
|
3.80
|
17.2
|
24.9
|
3.1
|
10.2
|
|
30-800
|
30
|
40
|
8.00
|
0.025
|
0.005
|
2
|
4.00
|
23.5
|
29.2
|
3.1
|
10.2
|
|
30
|
40
|
9.00
|
0.02
|
0.005
|
2
|
4.20
|
23.5
|
29.2
|
3.1
|
10.2
|
|
