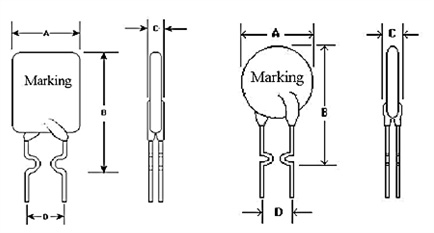

外形尺寸：
Figure 1 Figure 2
規(guī)格參數(shù)及尺寸表：
|
Model/PDF
|
Vmax
(V) |
Imax
(A) |
Ih
(A) |
Rmax
(Ω) |
Rmin
(Ω) |
Pd
(W) |
Fig.
|
Maximum Contour Size(mm)
|
|||
|
A
|
B
|
C
|
D
|
||||||||
|
6-075
|
6
|
40
|
0.75
|
0.50
|
0.20
|
0.3
|
2
|
7.40
|
12.7
|
3.10
|
5.10
|
|
6-090
|
16
|
40
|
0.90
|
0.30
|
0.10
|
0.6
|
2
|
7.40
|
13.0
|
3.10
|
5.10
|
|
6-110
|
16
|
40
|
1.10
|
0.27
|
0.10
|
0.7
|
1
|
7.80
|
13.0
|
3.10
|
5.10
|
|
6-120
|
6
|
40
|
1.20
|
0.22
|
0.12
|
0.6
|
2
|
7.40
|
13.5
|
3.10
|
5.10
|
|
6-135
|
16
|
40
|
1.35
|
0.18
|
0.07
|
0.8
|
2
|
7.40
|
13.5
|
3.10
|
5.10
|
|
6-155
|
6
|
40
|
1.55
|
0.16
|
0.06
|
0.8
|
2
|
7.40
|
13.5
|
3.10
|
5.10
|
|
6-160
|
16
|
40
|
1.60
|
0.16
|
0.05
|
0.9
|
1
|
7.80
|
16.0
|
3.10
|
5.10
|
|
6-185
|
16
|
40
|
1.85
|
0.13
|
0.04
|
1.0
|
1
|
7.80
|
16.0
|
3.10
|
5.10
|
|
6-250
|
16
|
40
|
2.50
|
0.08
|
0.02
|
1.2
|
1
|
10.0
|
16.0
|
3.10
|
5.10
|
|
6-300
|
16
|
40
|
3.00
|
0.07
|
0.02
|
1.2
|
1
|
10.0
|
16.5
|
3.10
|
5.10
|
